product Description

01.

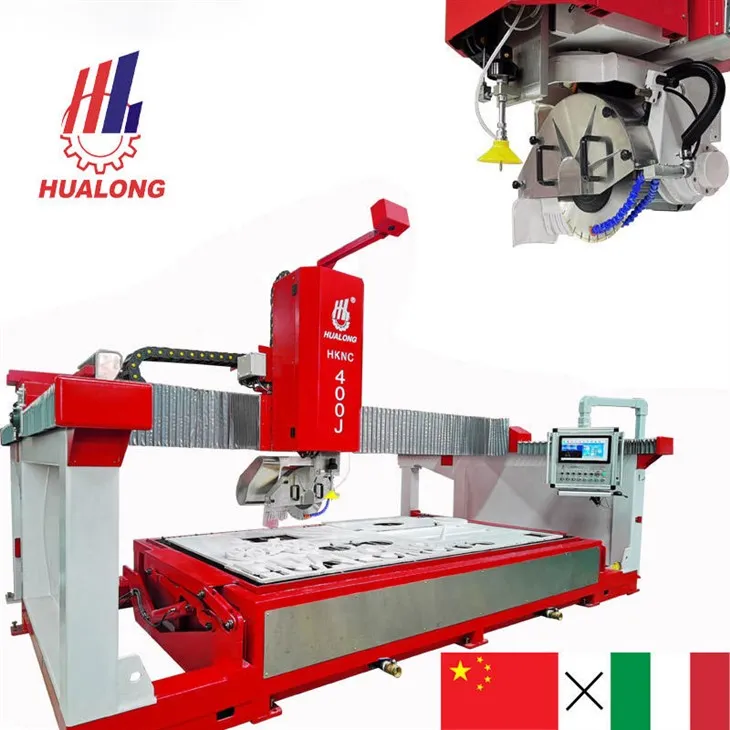

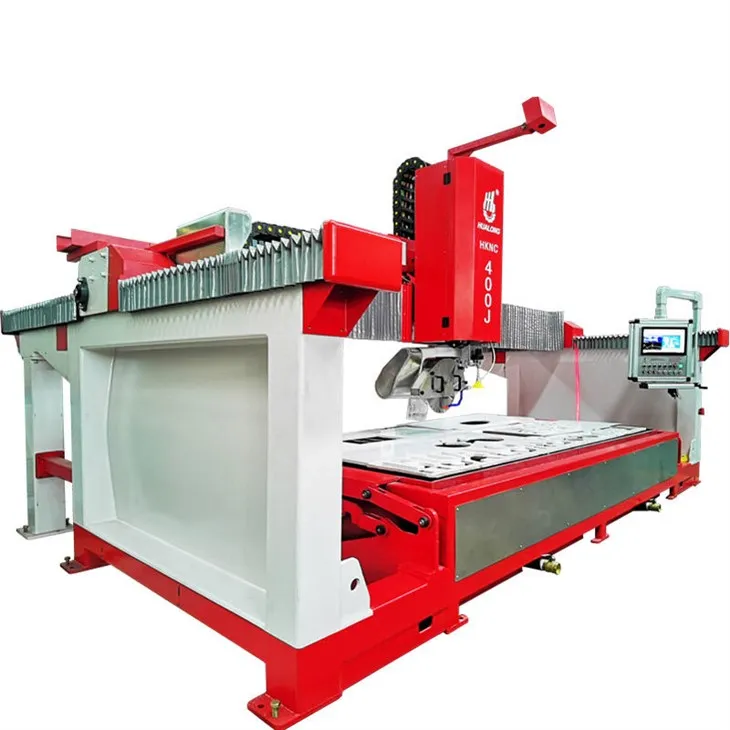

CNC Stone Machine

Powered by top-of-the-line Italian ESA CNC system, this fully automatic dual-function machine integrates a 5-axis CNC saw and a 3-axis waterjet. It brings an innovative cutting solution for granite, marble, quartz, limestone and the latest advanced ceramic materials.

The CNC saw performs well in slab cutting, countertop processing, sink hole cutting, profile shaping and engraving, among other applications.

The waterjet cutting head ensures precise and intricate shapes and angles on various materials, making it ideal for inlay patterns of porcelain, stone, marble and granite.

02.

Main Features

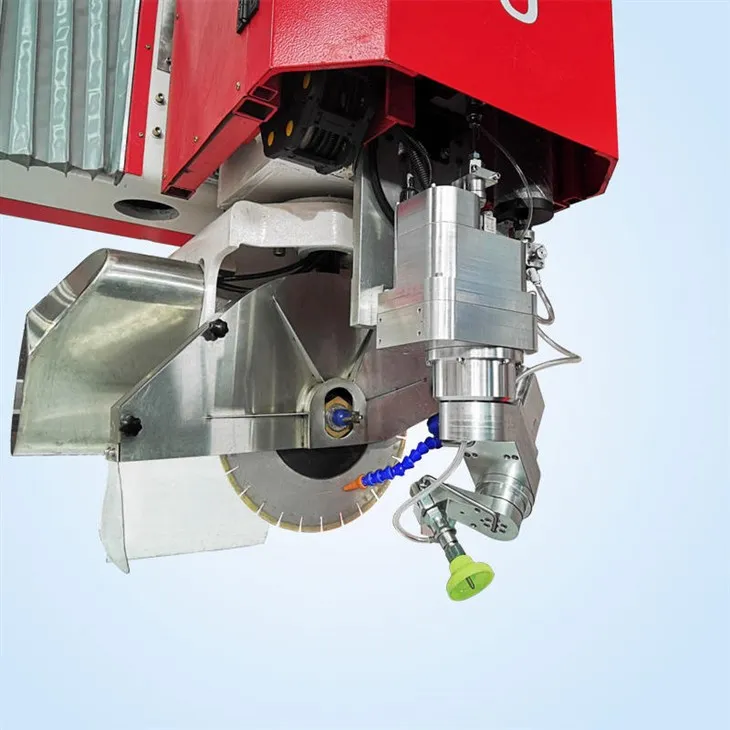

5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw

* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.

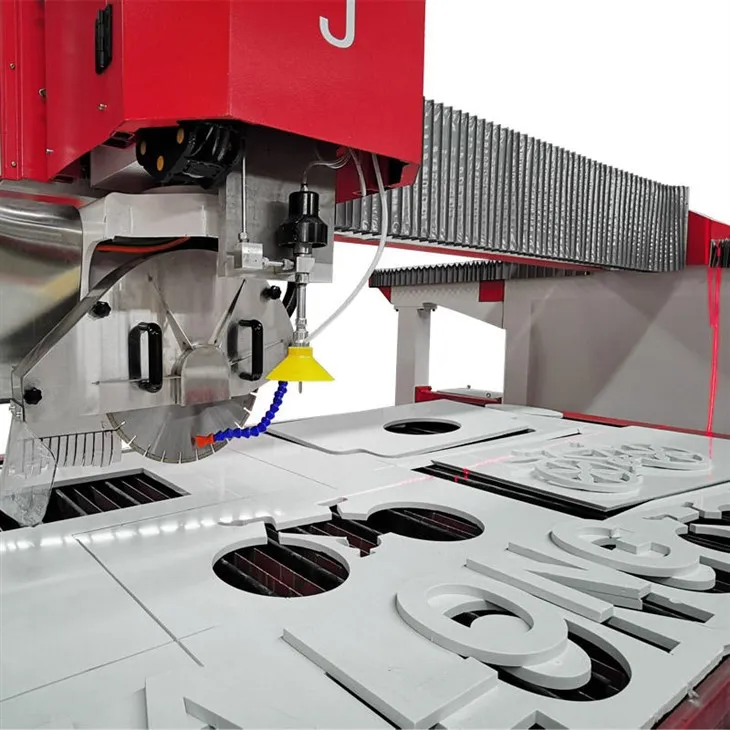

3-axis Waterjet ---this machine is a fully interpolated 3 axis waterjet either
* Automatic precise and fine cutting for
inside-corner or other complex design fabrication.
* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.

Detail images

Control system -- CNC

Brand: ESA

Original: Italy

This high-end CNC system comes with a user-friendly touchscreen for simple parameter setup and fully automatic operation. It turns complex stone machining into an easy, efficient process with consistent, high-quality results.

Digital Servomotor

Brand: YASKAWA
Original: Japan

The permanent magnet servomotor comes with built-in drivers and works perfectly with ESA CNC systems, delivering stable and reliable control for the X, Y, Z, C and A axes.

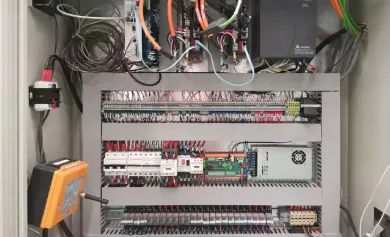

Electric Cabinet

This high-end CNC system comes with a user-friendly touchscreen for simple parameter setup and fully automatic operation. It turns complex stone machining into an easy, efficient process with consistent, high-quality results.

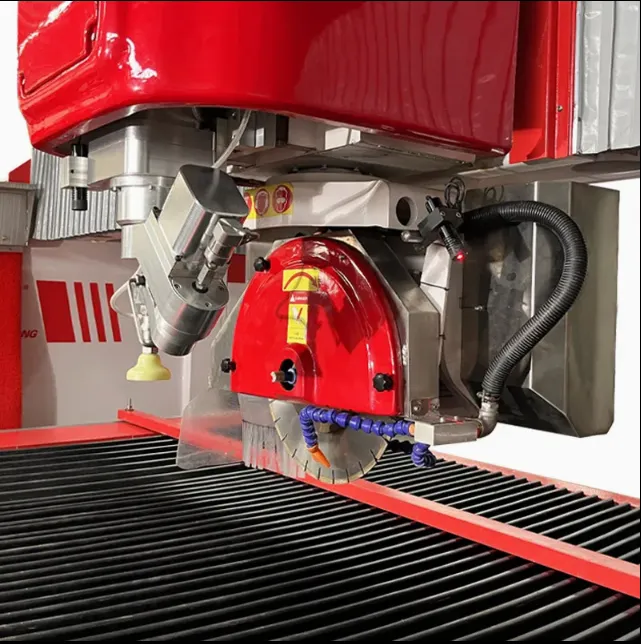

Electro-spindles

High-quality inverter control enables speed adjustment from 0 to 6000 rpm, supporting a wide range of diamond tools including saw blades, core drills and milling cutters. Tool changing is done manually, and the machine features an internal water cooling system.
